“Plug’n’Free tiny” portable instant off-grid solar for tiny homes or site offices. Build to order from $20k

Category:

Description

The Plug’n’Free series is a revolutionary off-grid solar power system designed for everything from remote living to commercial applications. It eliminates the complexity and risks that comes with ordinary kit-sets or component purchases that require DIY, making off-grid power simple, reliable, and virtually fail-proof. These units differentiate from an ordinary solar set-up with:

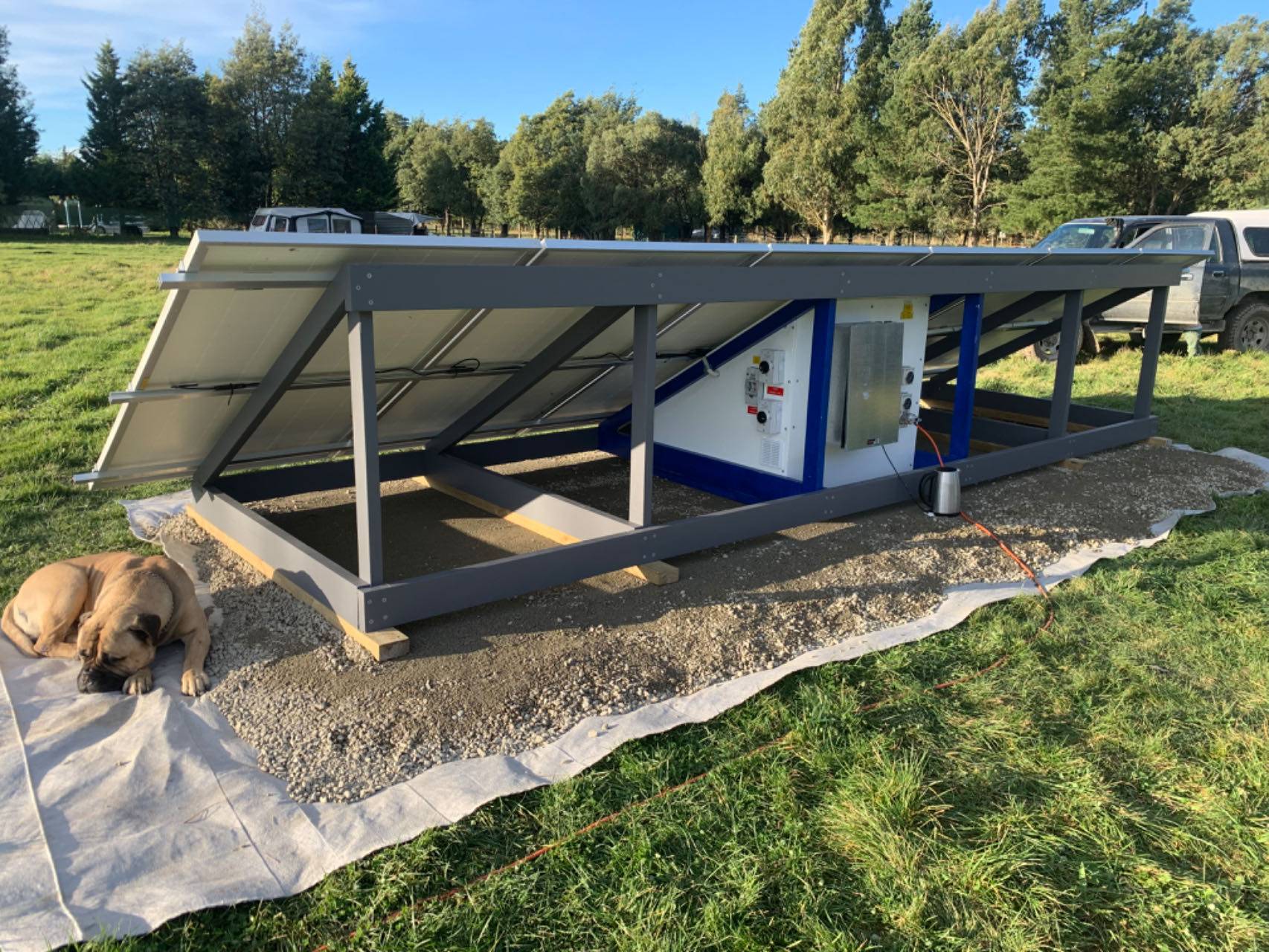

1. A “roof” with ready installed panels, Two insulated tempered boxes that hold the batteries and electronics – water, insect and rodent proof. The high quality built has a design life of more than 30 years.

2. Fully integrated solar power system

3. Complete electrical AC installation and

4. Fully capable for automated load management

Each unit is microgrid-ready and supports automated load management for applications such as hot-water diversion, irrigation, and electric-vehicle charging. The system can be easily monitored and controlled from your laptop or smartphone.

Developed from 20 years of experience in off-grid systems, Plug’n’Free combines progressive engineering with exceptional workmanship and high end components. It represents a leap forward in solar technology: a fully self-contained, genuinely plug-and-play power system—“made in New Zealand.”



This is the entry-model in the Plug’n’Free series, designed for tiny homes with a 16A caravan power connection. Ideal for the small budget or site offices with intermitted power demand of up to 4kW.

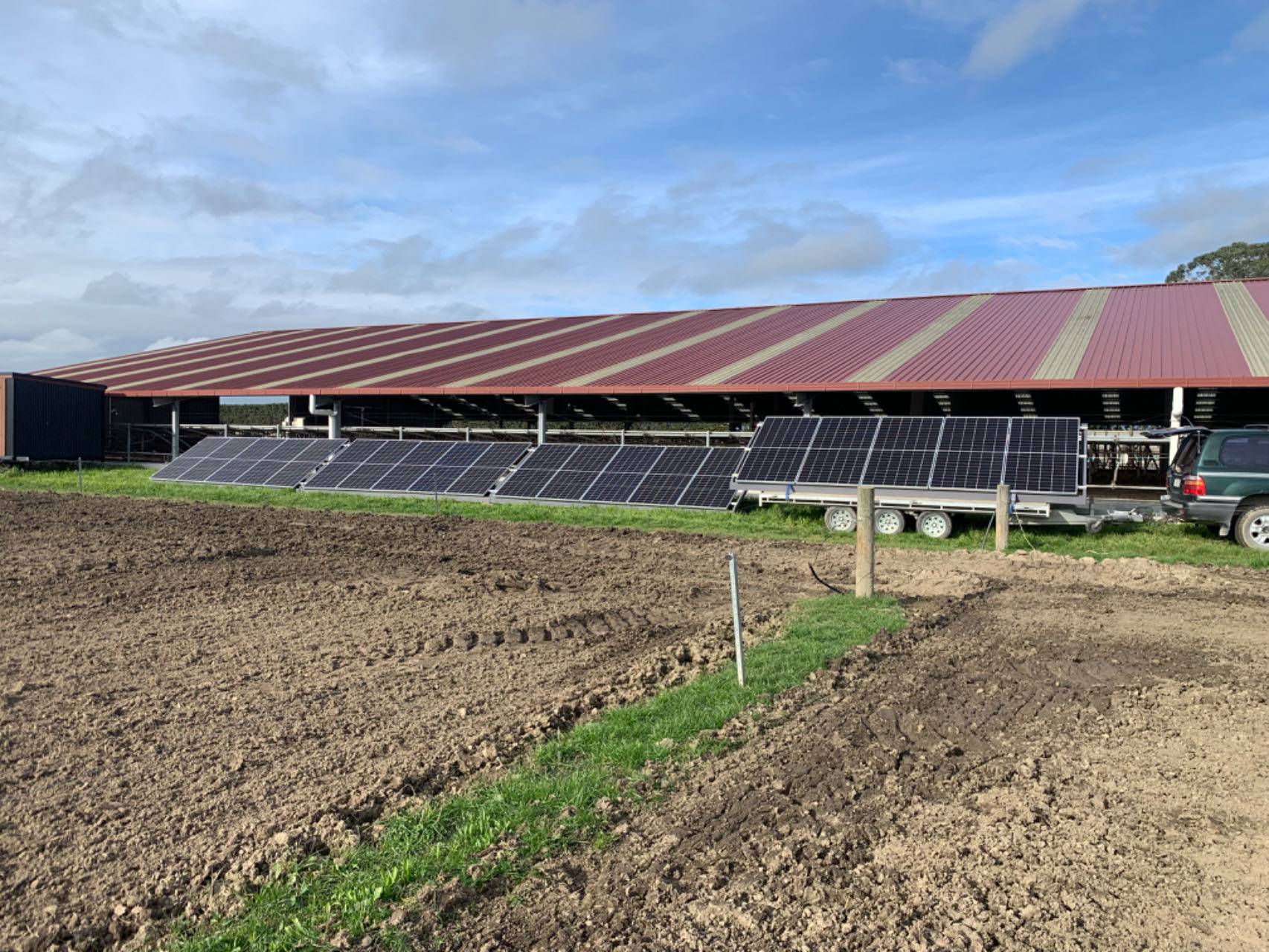

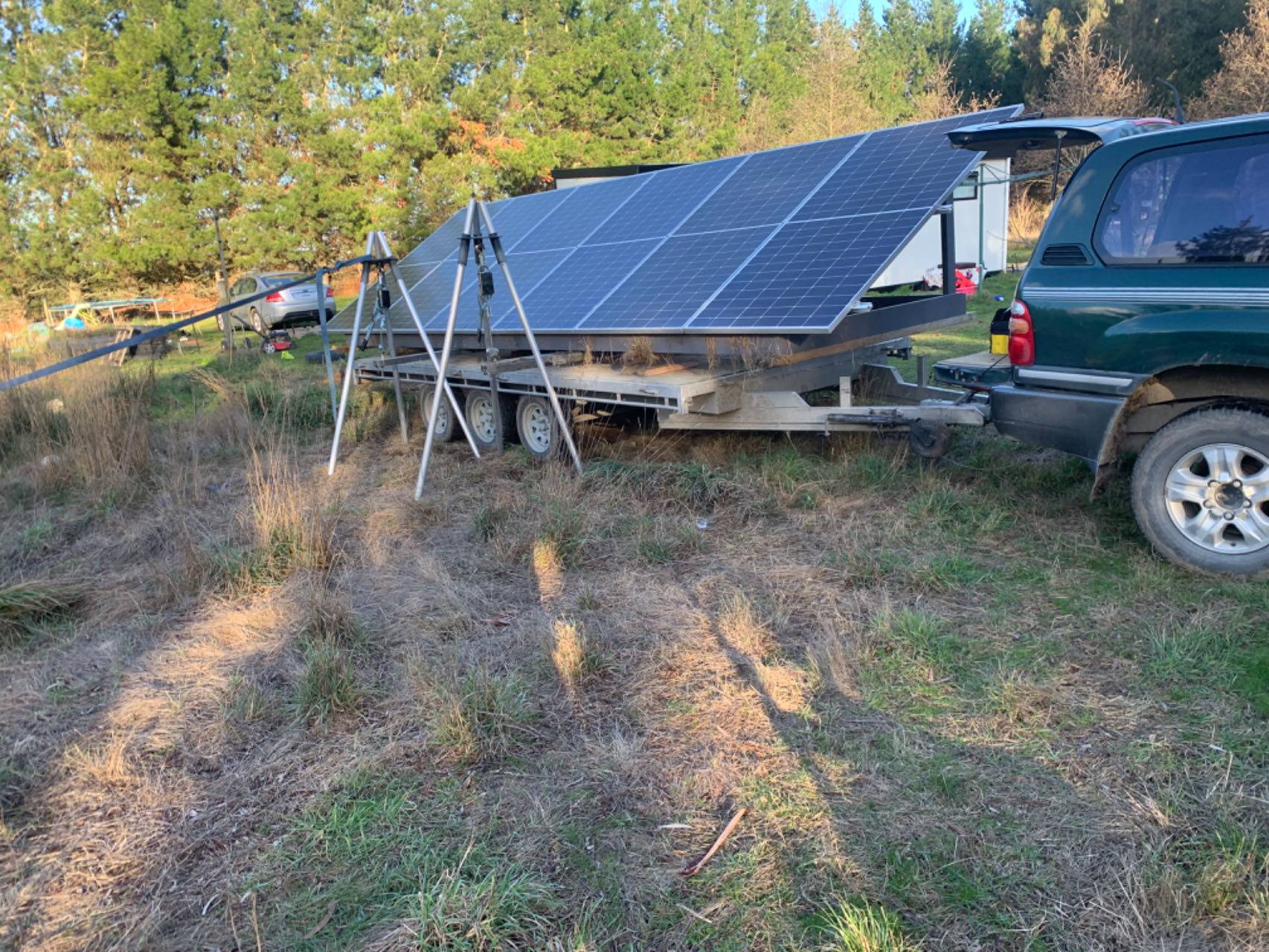

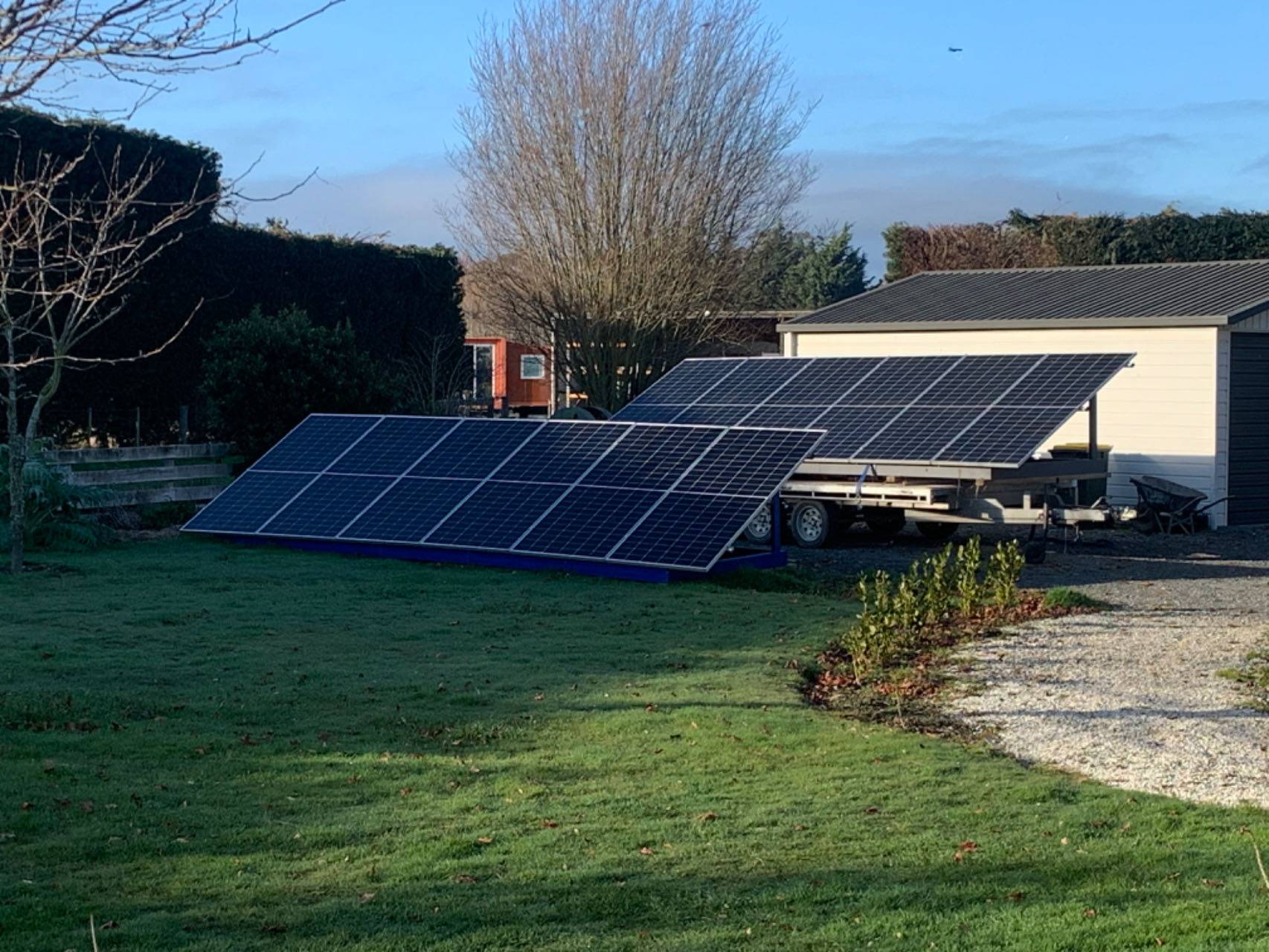

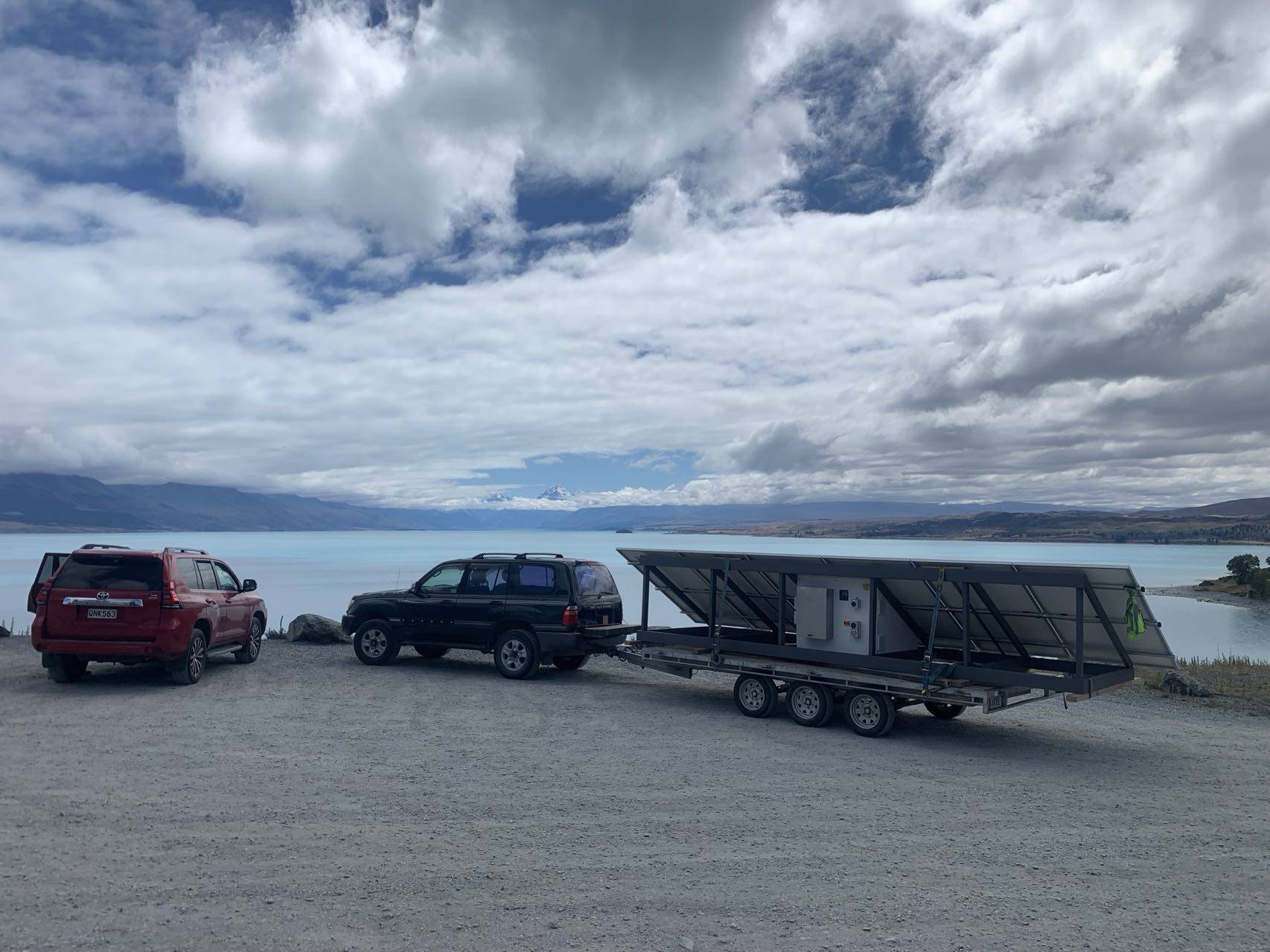

Keep the electricity generation strictly separated from your home or worksite. Connected with a standard power cord, these plug-and-play systems are ready to use within seconds. They can be placed directly on the ground or used as solar trailers when properly secured for transport. This eliminates the need for a WOF and can significantly reduce installation costs.

The system is built with high-quality, heavy-duty components. Its simplicity is not amateurish—it is intentional. Beyond the technology itself, all components are locally sourced and intelligently packaged, with a proven track record spanning more than five years. This does not only boosts the local economy but also keeps short response ways.

Most owners of an off-grid system have been faced with several issues and trouble before they achieved something that works. You need to identify a suitable area, selecting components and set it up. Then there is an electrician required to make the sockets and switchboards. This is not done in an evening and have driven many off-gridders nuts and made them poor. Non of this should cause your headaches anymore because this  system arrives ready to connect—simply plug it in and be free.

The base system includes solar:

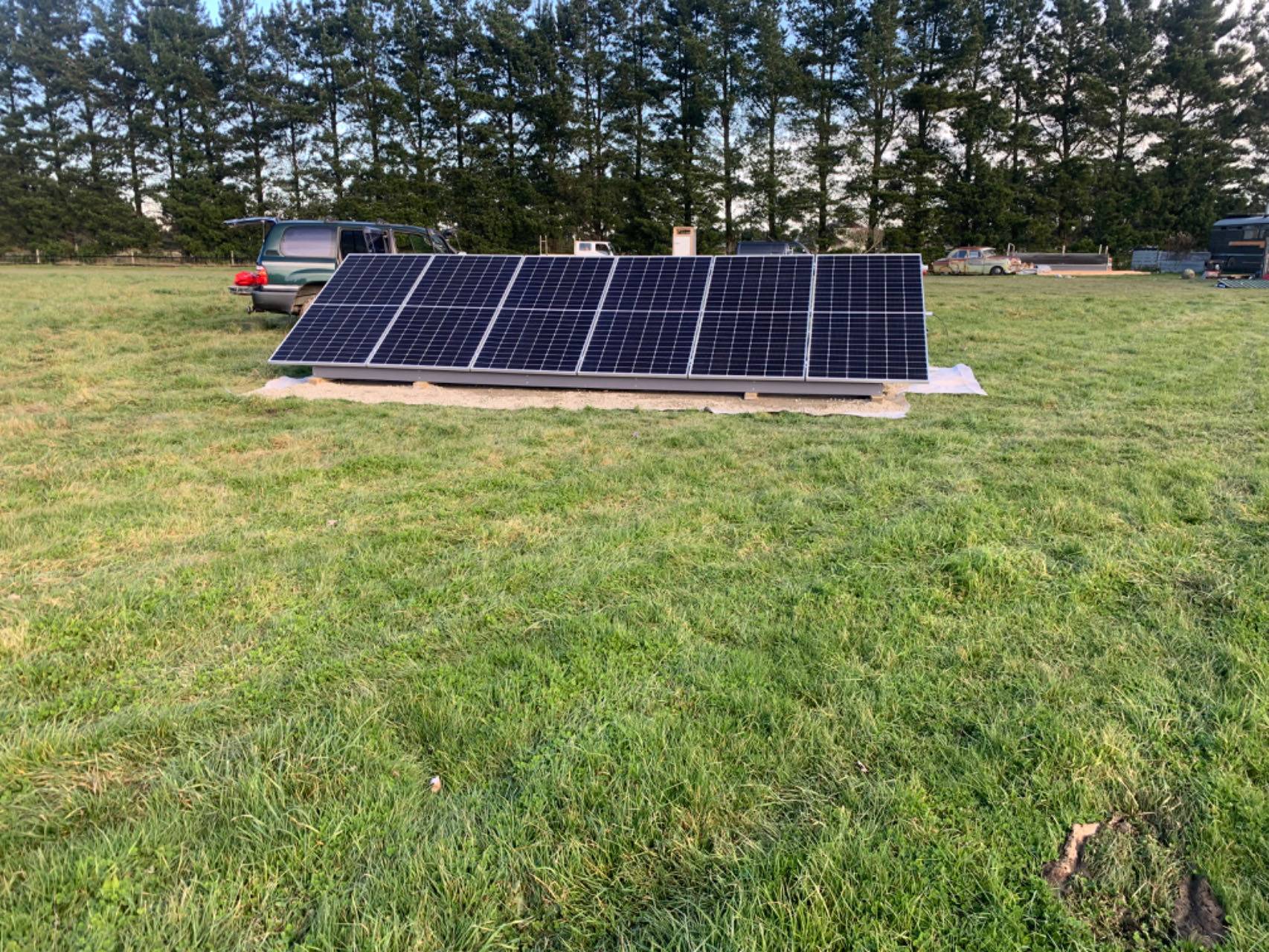

  • 6 × 550W Jinergy solar panels — 3.3kW total capacity (expandable to 7.7kW)
  • 1 × 65–80A MPPT charge controller
  • 1 × 4kW low-frequency inverter with up to 96% peak efficiency (optional 8kW)
  • 15kWh lithium iron phosphate (LFP) battery (optional 30kWh)
  • Intelligent cooling and temperature-control system
  • Two-compartment internal layout
  • External 10A generator input

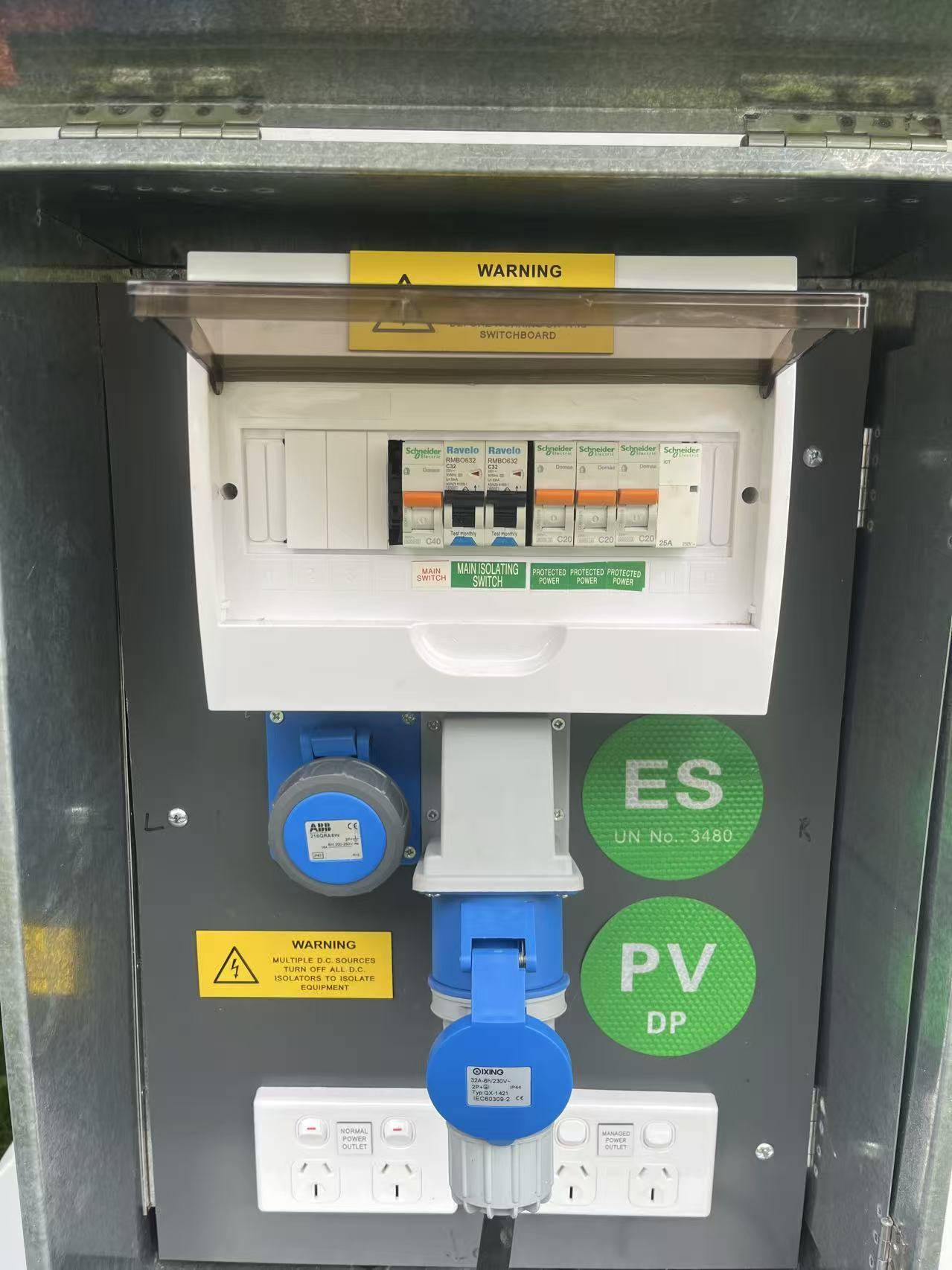

The system also includes a complete AC installation with customised connectors:

  • 1 × 16A caravan socket
  • 2 × 15A domestic sockets
  • 2 × 15A excess-power sockets

All components are housed in a water-resistant, galvanised-steel cabinet. Each socket is individually fused and protected by an RCD.

Safety features include:

  • Emergency AC shutdown, lockable in the off position
  • Externally accessible solar isolator
  • Externally accessible battery isolator with MCCB protection

A range of upgrades is available, including:

  • Additional solar panels
  • Increased battery capacity
  • Higher AC output
  • Steel transport frame
  • Energy-management modules
  • Home-automation integration

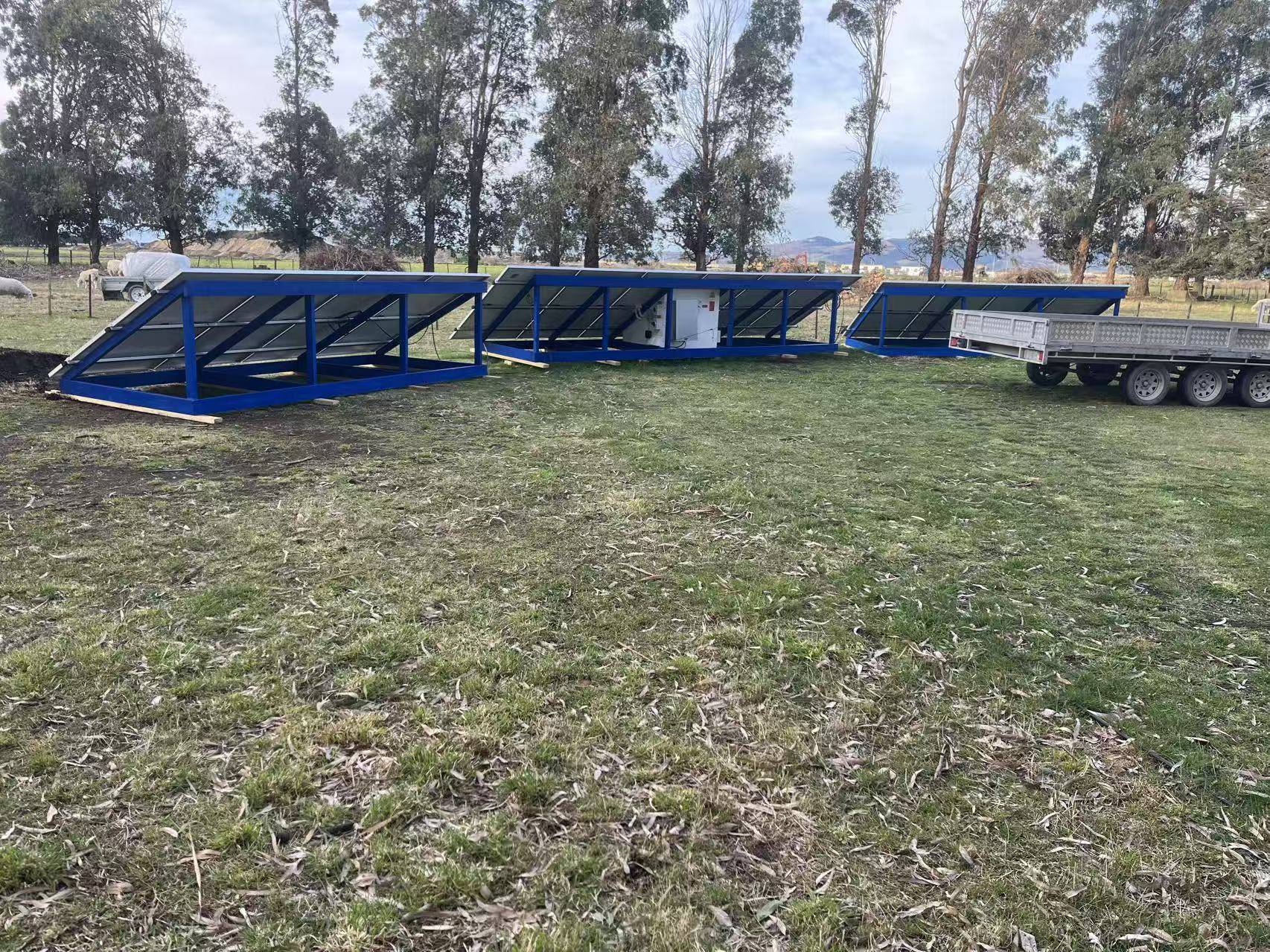

  • All PnF systems are microgrid ready (connects multiple systems into virtually one but keeps the freedom of redundancy)
  • Other customised options

The Plug’n’Free system delivers a robust, ready-to-use power solution for tiny homes, cabins, and other compact off-grid applications.



Build to Order (BTO) is a manufacturing strategy where products are assembled only after receiving a confirmed customer order. This approach minimizes inventory costs, reduces waste, and enables mass customization by aligning production directly with actual demand rather than forecasted sales.
